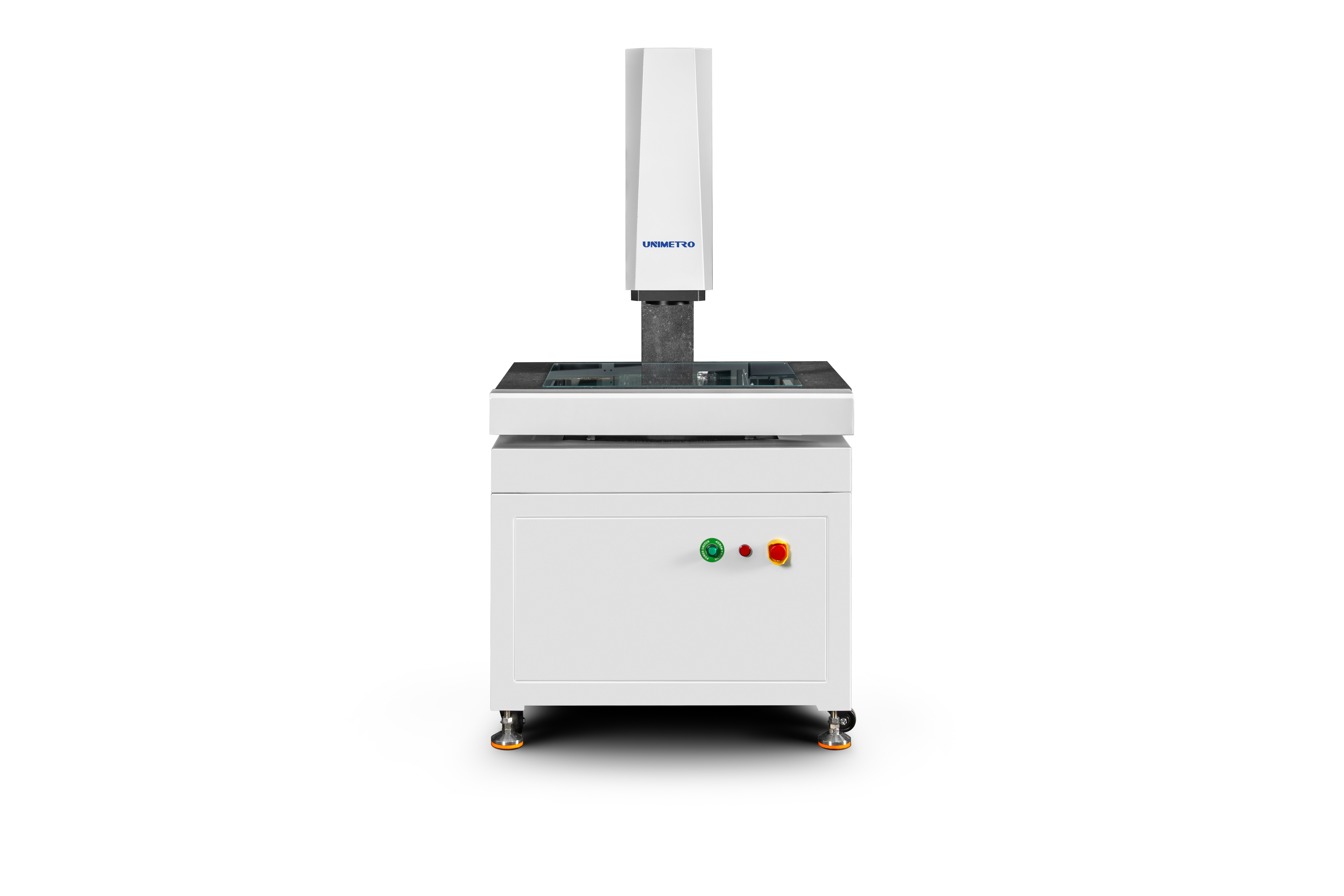

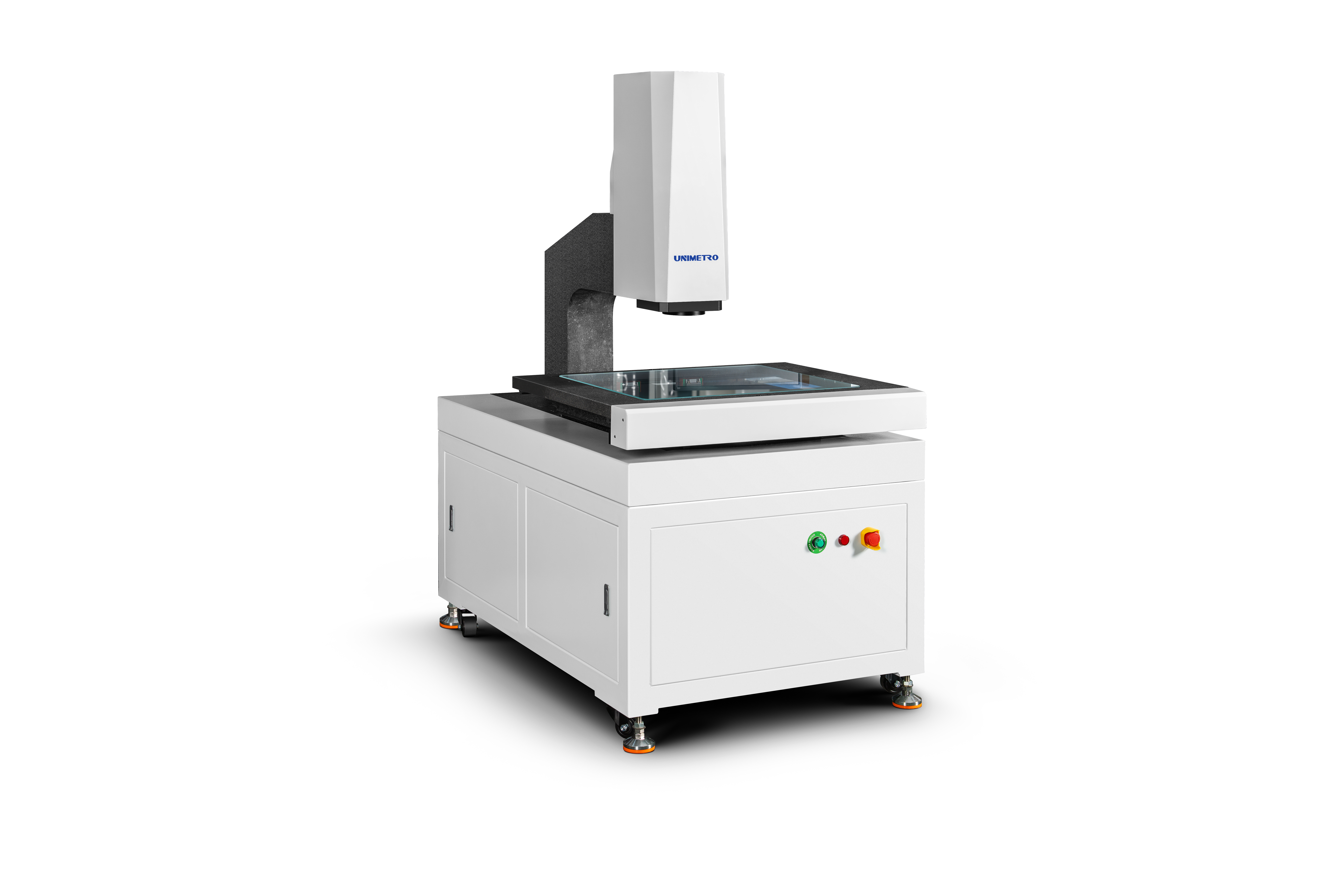

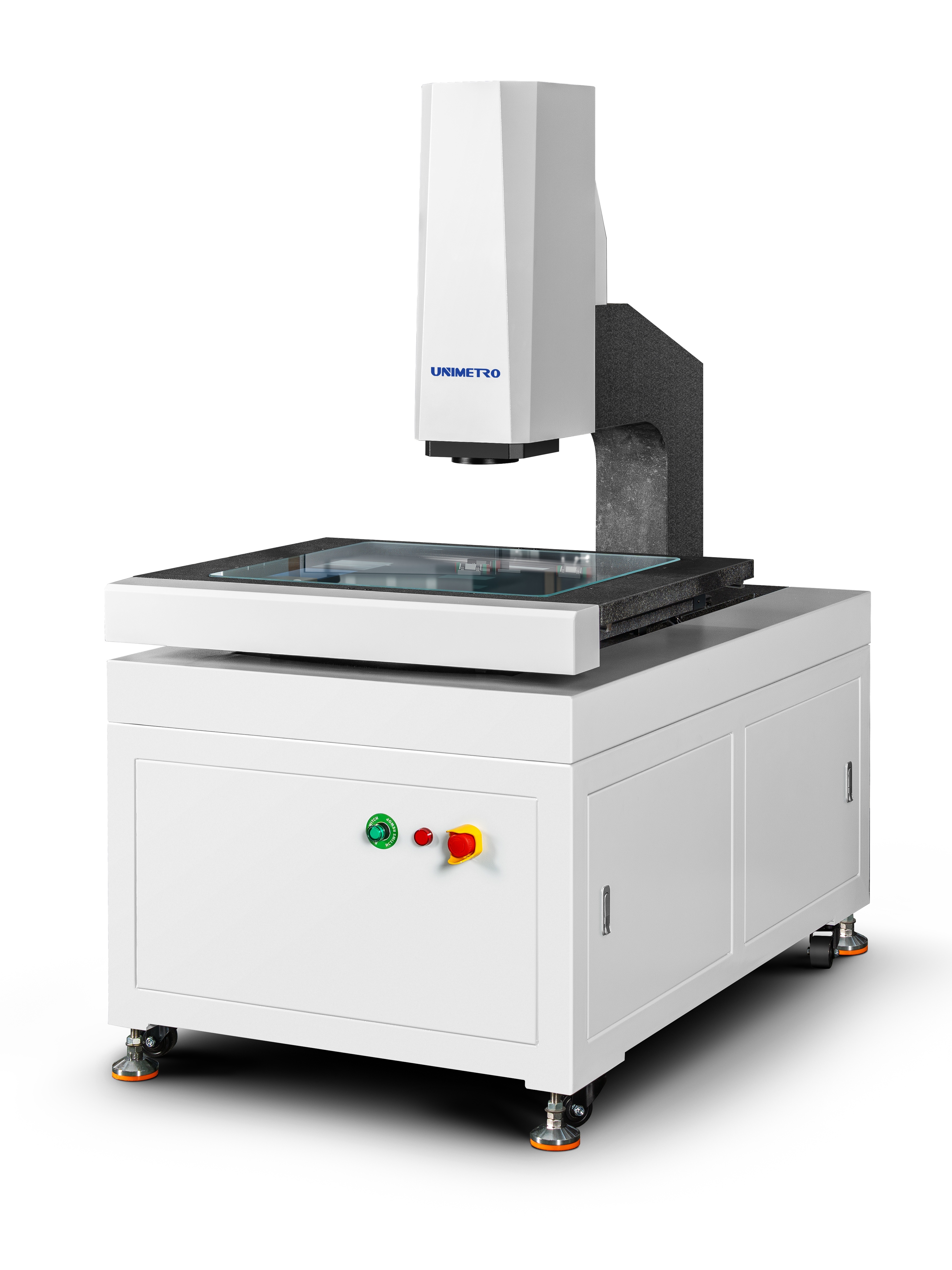

SV Series High-Efficiency Vision Measuring Machine – MARB Multi-Axis Resolution Base for Auto/3C Mass Precision Workpiece Inspection

The MARB-SV series is a high-performance fully automatic marble workbench image measurement instrument featuring MARB (Multi-Axis Resolution Base) and SV (Super/Stable Video) technologies. This high-configuration system delivers superior resolution and faster processing speeds, offering robust functionality for demanding industrial applications.

Capable of three-axis fully automatic programmable detection, this system matches workpiece coordinate systems through programming to automatically execute measurement processes. For repeated measurements of heavy workpieces, it features memory, learning, and auto-programming functions, enabling rapid and accurate real-time measurement on-site.

Constructed with high-stability marble components that offer strong durability and low maintenance costs, this instrument perfectly balances high precision, high efficiency, and long-term durability, making it the core tool for quality control in large-scale, complex and precise manufacturing industries.

Resolution: 0.5μm (0.1μm optional)

Camera: Industrial-grade color CCD camera

Lens: 1x-10x (Variable magnification)

Magnification: 20X - 200X (The magnification varies depending on the model of the selected camera; the actual magnification is subject to the measured data.)

Work Distance: 85 mm

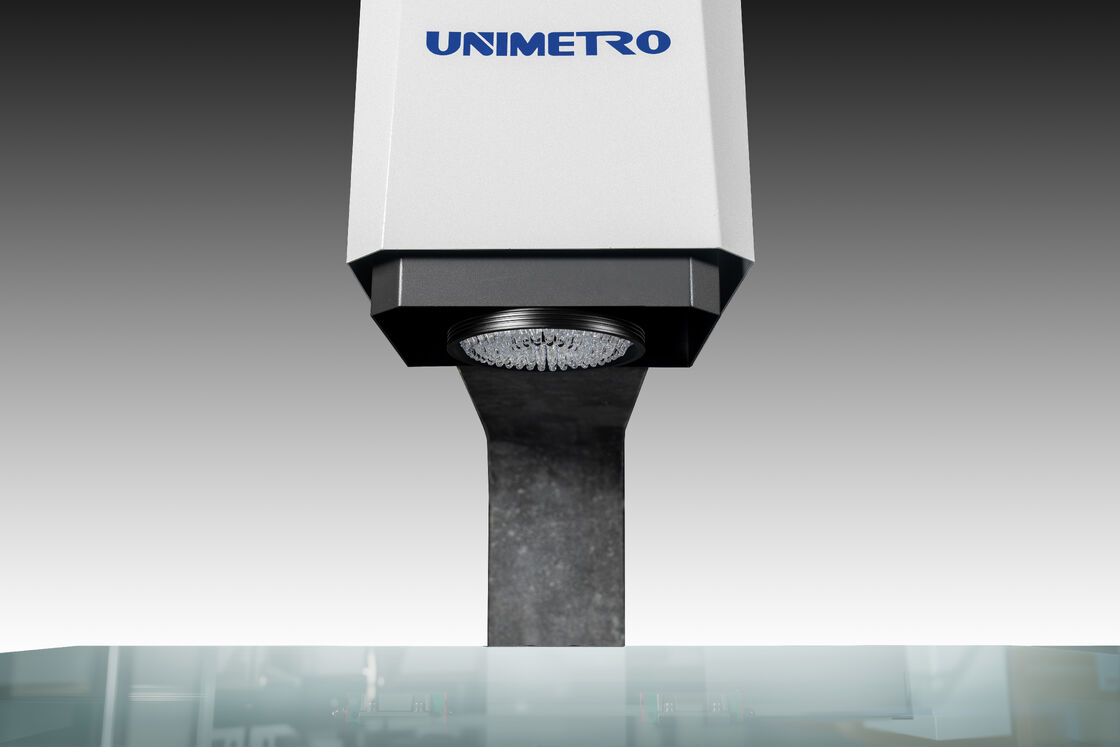

Illumination: Programmable surface light, LED bottom parallel light (Optional: coaxial light)

Drive system: CNC control, linear motor drive; Joystick, mouse keyboard control

Linear scale resolution: 0.1μm

High Rigid Structure Design:

• Whole closed frame moving bridge structure with fixed measuring workpiece, providing large bearing capacity and excellent motion performance
• Finite element analysis technology integrated into mechanical design to ensure high rigidity and precision
• Grade 000 granite base with high strength, corrosion resistance and excellent stability
• Aluminum oxide surface treatment worktable for fast, flexible action control, durability and aesthetics

High Precision Configuration:

• RENISHAW open grating ruler with 0.5μm resolution for high precision and stability
• Precision linear guide rail, ball screw of grinder and AC servo motor ensure positioning accuracy stability
• 2M pixel high-definition color Giga digital camera for clear observation and stable measurement
• 6.5x high-definition optical lens with accurate automatic zoom and fast pixel calibration
• Programmable 5-ring 8-zone LED surface light source, transmission parallel LED contour light source system with intelligent 256 level brightness adjustment
• Full axis CNC control with AC full closed loop servo motor drive

Optional Multi-Sensor for 3D Measurement:

HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. It also supports non-contact sensors such as probe and laser, and is compatible with RENSHAW full series of probe brackets, enabling automatic transformation of full-scale measurement on a single device to significantly improve productivity.
