Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging

Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging
Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: UNIMETRO
Numéro de modèle: Ranger 600
Quantité de commande min: 1
Prix: $15,600-22,000
meilleur prix Contactez
Détail Infomation
Voyage de l'axe x: 80 mm Voyage de l'axe: 60 mm
Plage de l'axe Z: 60 mm Diamètre d'outil maximum: 50 mm
Longueur d'outil maximum: 300 mm Distance de travail: 90 mm
Grossissement de l'objectif: 0,7-4,5x Résolution de la caméra: 2 m pixel HD (5m en option)
Résolution d'échelle linéaire: 0.0001mm Plage de grossissement: 12,6x ~ 79.2x (25,2x ~ 158,4x facultatif)
Champ de vision: 27 * 20 mm ~ 4,3 * 3,3 mm (13,5 * 10 mm ~ 2,3 * 1,6 mm en option) Précision: X ~ y, (2,5 + l / 100) µm
Système de PC: PC tout-en-un, Windows 10 OS, 24 "LCD Type d'illumination: Lumière à anneau à LED à 8 sections, lumière de contour, lumière auxiliaire
Formats d'entrée / sortie: DXF, Excel
Mettre en évidence:

Electronic Power Tool Inspection System

,

SMARTOOL Measuring Software Vision Measurement Machine

,

Wooden Case Packaging Video Measuring System

Description de produit

Milling Tool Inspection System Tool Video Measuring System Vision Measurement Machine

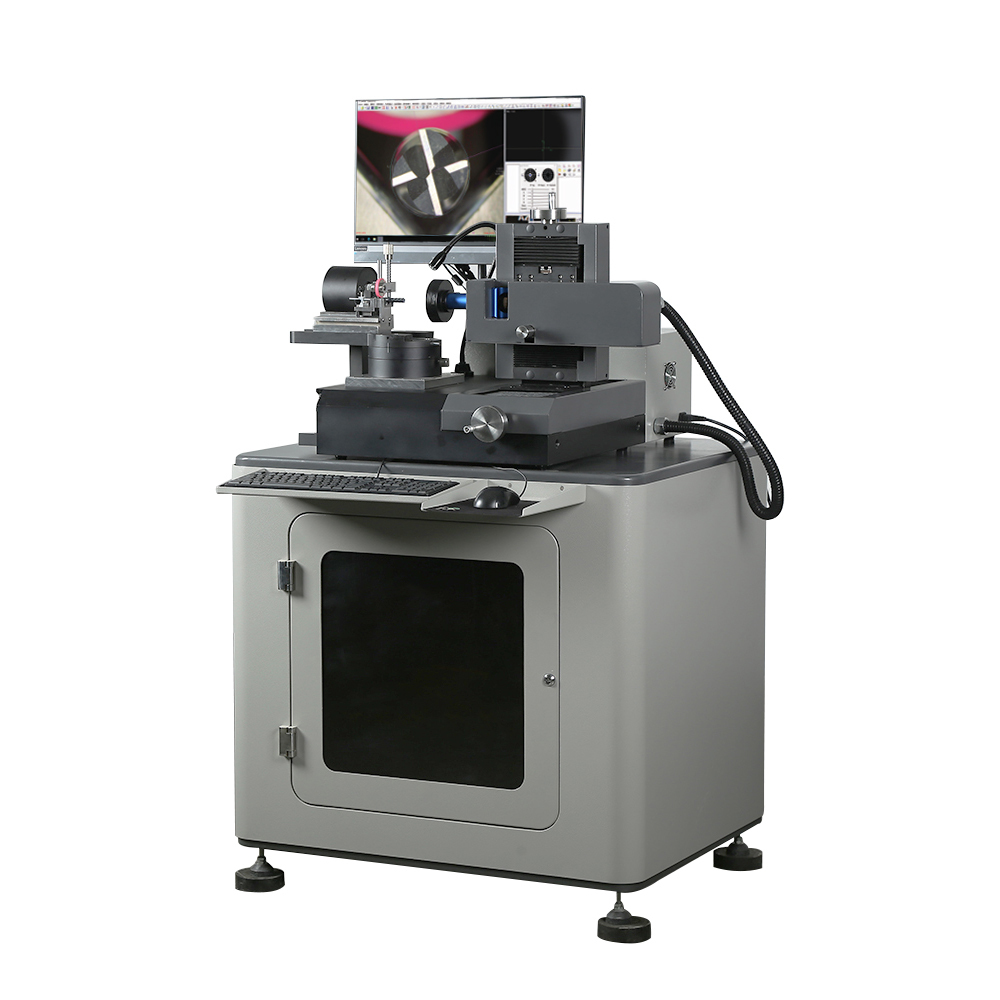

UNIMETRO RANGER600 Tool Inspection System UNIMETRO RANGER600 Tool Inspection System alternate view
Product Application
The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters and countersinks with a flexible illuminating system. Thanks to the compact design and great stability, the RANGER600 can be employed in the metrology room, receiving inspection, or directly in production.
The RANGER600 Tool Inspection system is configured with SMARTOOL universal measuring software, making it the ideal instrument for all types of metal cutting tools - from fast checking of single criteria (such as outer contour or angles) to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE measuring process with the RANGER600.

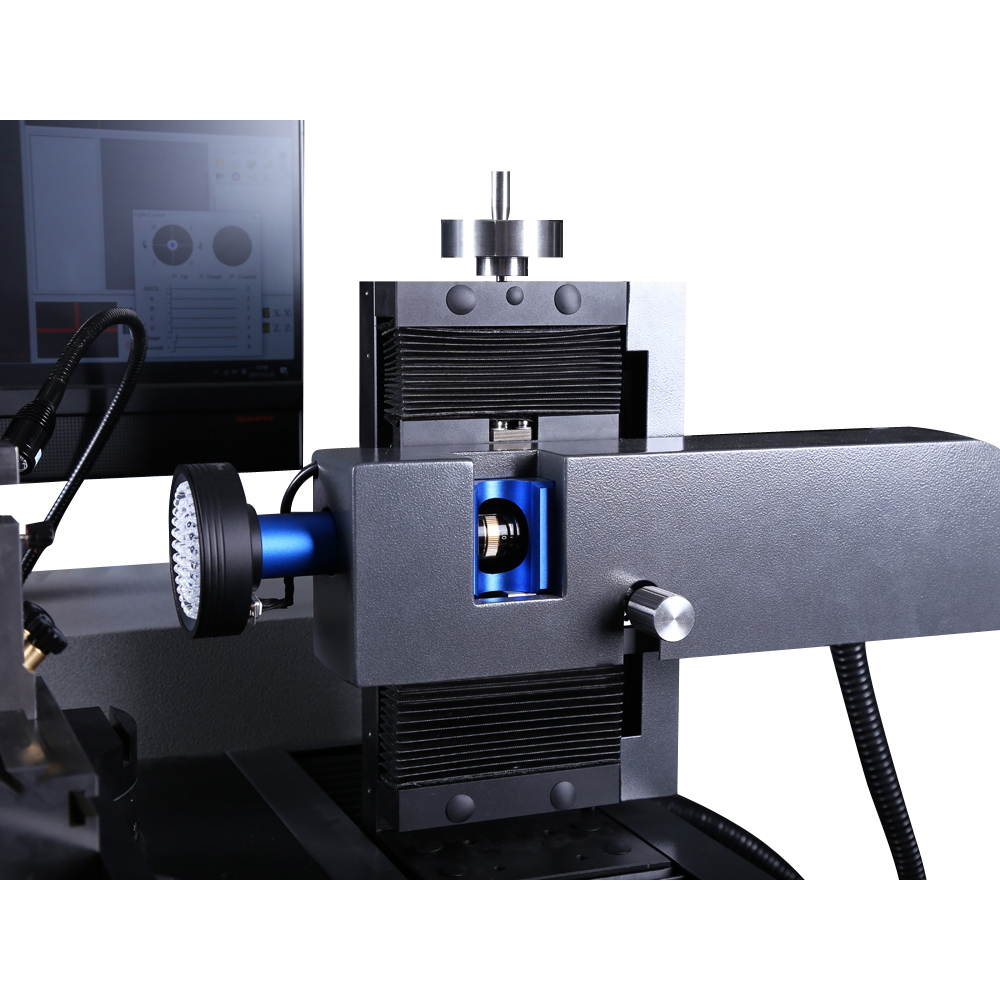

RANGER600 Tool Inspection System in operation RANGER600 close-up view RANGER600 measurement interface RANGER600 measurement interface alternate view RANGER600 tool measurement example RANGER600 tool measurement example alternate view
Technical Parameters
X axis travel 80mm
Y axis Travel 60mm
Z axis measuring range 60mm
Max tool Diameter 50mm
Max tool length 300mm
Working distance 90mm
Lens 0.7-4.5X dented zoom lens
Camera 2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution 0.0001mm
Magnification 12.6X~79.2X/25.2X~158.4X (Optional)
Field of view 27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm (Optional)
Measuring accuracy X~Y,(2.5+L/100)µm, L is the measured length
PC ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor
Illumination 8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable
Input format DXF files
Output format EXCEL, DXF
RANGER600 technical details RANGER600 technical details alternate view RANGER600 measurement example RANGER600 measurement example alternate view RANGER600 system components RANGER600 system components alternate view
Advanced Design Features
  • Ergonomic design and solid construction
  • HD image capturing and display combination, with optional microscope magnification levels
  • Stable and accurate V block for easy tools holding and alignment
  • Mechanical fixed measuring angles of 0 degree and 90 degrees available on the rotary stage
  • High accuracy encoder embedded in the rotary table for precise angle location

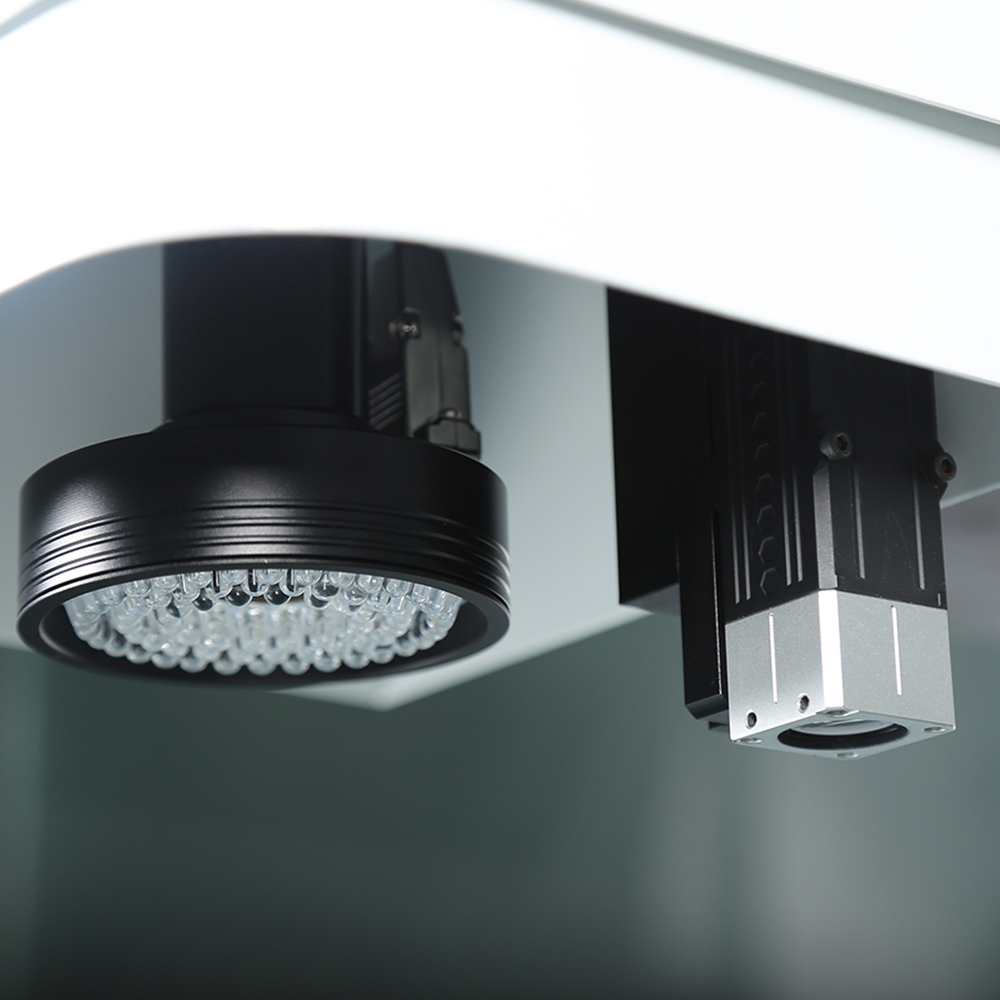

  • Multiple section programmable LED ring light for surface illumination, including contour lighting and free angle auxiliary light
  • SMARTOOL measuring software with specific functions for cutting tools
  • Automatic edge detection, fast angle measurement with reticle, and CAD element comparison functions
  • Measuring results can be quickly output to EXCEL file reports or CAD files
  • ALL-IN-ONE PC system for enhanced stability
Multiple Angle Measurement Capabilities

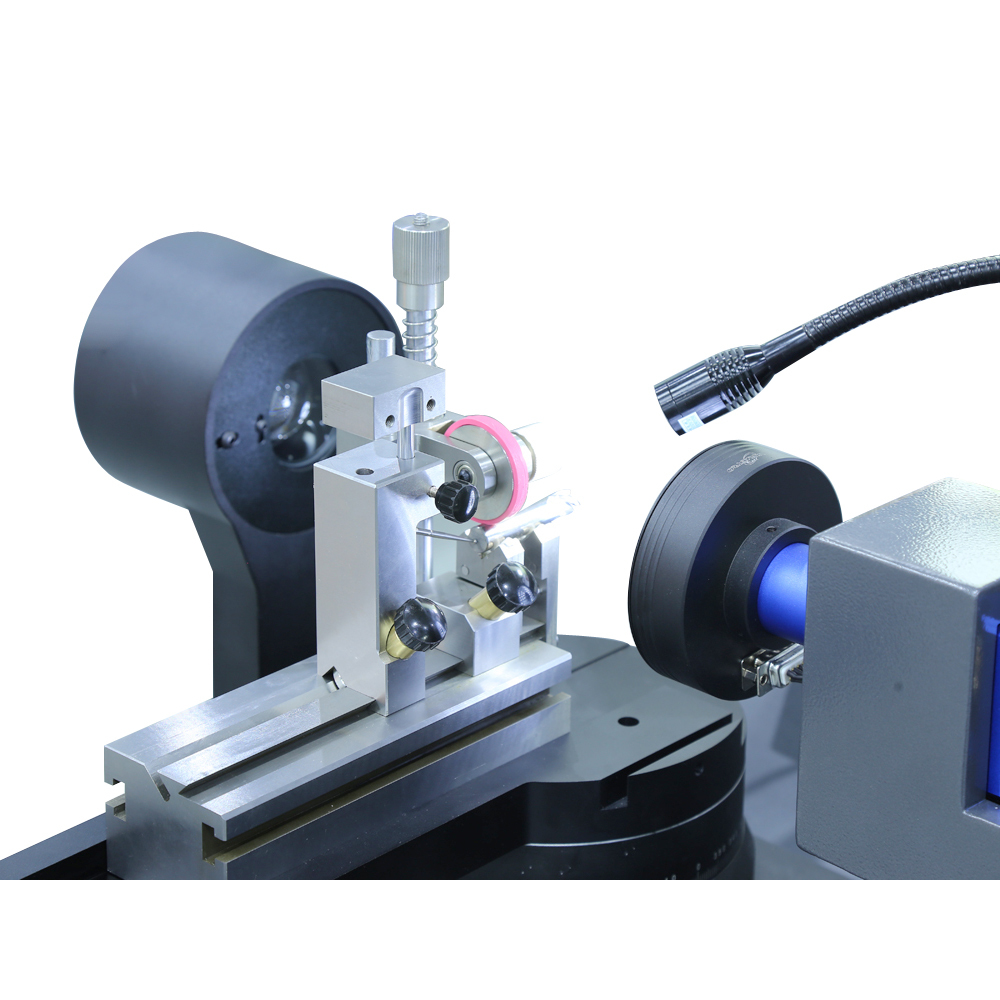

The rotary table of the RANGER600 offers two mechanical fixed angles (0° and 90°) for fast and precise tool angle location during measurement. At 0°, users can measure Tool End, Tool End - Center shaft, and Tool End - front angle. The 90° position is designed for Helix angle, Axial Front angle, First Rear angle, Second Rear angle, and Tilting Edge angle measurements. For other angle requirements, the embedded encoder provides precise angle readings displayed in the software.
RANGER600 angle measurement demonstration RANGER600 angle measurement alternate view
0 Degree Measurement
RANGER600 0 degree measurement example RANGER600 0 degree measurement alternate view
45 Degrees Measurement
RANGER600 45 degrees measurement example RANGER600 45 degrees measurement alternate view
90 Degrees Measurement
RANGER600 90 degrees measurement example RANGER600 90 degrees measurement alternate view RANGER600 measurement interface details RANGER600 measurement interface details alternate view
Illumination System Features
Free Angle Auxiliary Light

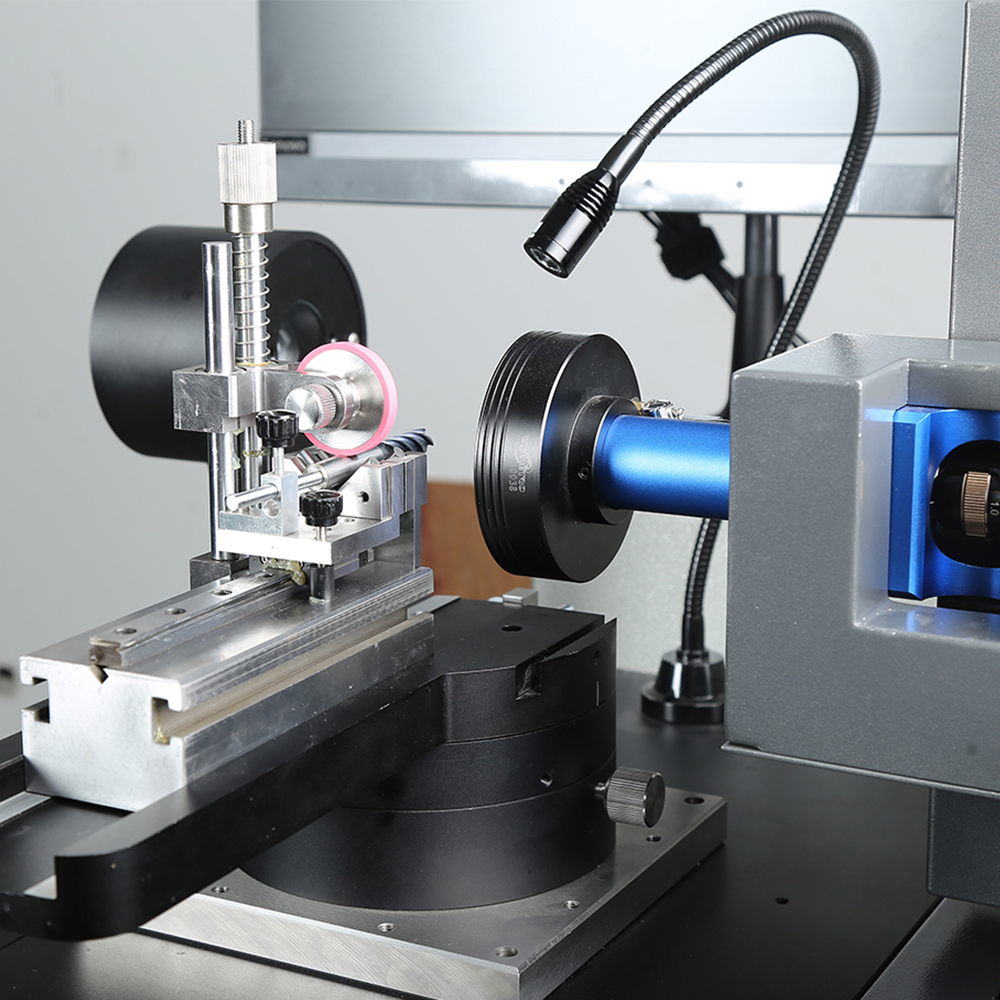

A dimmable additional light on a flexible arm provides localized image enhancement for detailed measurements.
RANGER600 free angle auxiliary light RANGER600 free angle auxiliary light alternate view
Contour Light Module
The RANGER600 includes a parallel light path contour LED module that moves along the X-axis, providing optimal imaging and sharp edge definition when measuring tool contours.
RANGER600 contour light module RANGER600 contour light module alternate view
Base Table
The solid standing workstation features practical, open-view storage space for materials and tools.
RANGER600 base table RANGER600 base table alternate view
Tools Holder
A multi-section tools holder is embedded at the machine side for organized tool preparation and storage.
SMARTOOL Software Features
SMARTOOL software interface SMARTOOL software interface alternate view
The SMARTOOL Cutting Tools Measuring Software is developed based on high-accuracy optical and digital measuring technology. This intuitive software offers numerous measuring and evaluation algorithms specifically designed for tools manufactured or sharpened in grinding operations.
Key Software Features
SMARTOOL software features overview SMARTOOL software features overview alternate view
Easy Operation
High-resolution image display with graphical interface. All function keys and control panels are displayed on the software window for intuitive operation.
SMARTOOL easy operation interface SMARTOOL easy operation interface alternate view
Dynamic Real-Time Curve View
The software provides real-time edge detection curve visualization, making edge analysis and measurement more intuitive. Users can switch to curve view mode at any time during measurement.
SMARTOOL real-time curve view SMARTOOL real-time curve view alternate view
Fast Angle Measuring with Reticle
The freely rotatable reticle in the SMARTOOL software displays angles, enabling quick angle measurements through edge comparison.
SMARTOOL angle measurement with reticle SMARTOOL angle measurement with reticle alternate view
CAD Comparison
Users can import CAD tool drawings as references, comparing real images to CAD designs to evaluate cutting tool geometries.
Measuring Capabilities
RANGER600 measuring capabilities overview RANGER600 measuring capabilities overview alternate view
Helix Angle Measurement
Helix angle measurement example Helix angle measurement example alternate view
Axial Front Angle Measurement
Axial front angle measurement example Axial front angle measurement example alternate view
First Rear Angle Measurement
First rear angle measurement example First rear angle measurement example alternate view
Second Rear Angle Measurement
Second rear angle measurement example Second rear angle measurement example alternate view
Tilting Edge Angle Measurement
Tilting edge angle measurement example Tilting edge angle measurement example alternate view
Tool End Measurement
Tool end measurement example Tool end measurement example alternate view
Tool End - Center Shaft Measurement
Tool end - center shaft measurement example Produit Tag:
