Modèle:	Série SV	Nom du produit:	Machine de mesure de vision entièrement automatique - SV3
Répétabilité:	2 ém	Précision:	2+L/200um
Résolution d'échelle linéaire:	0.5um (0,1um en option)	Mode de mesure:	Entièrement automatique
Soutien:	OEM, ODM, personnalisé	Scénario d'application:	Laboratoire/industrie
Garantie:	12 mois	Poids (kg):	400
Mesurer la rage:	300/300/200
Mettre en évidence:	SV Series marble worktable vision measuring machine , MARB multi-axis base measuring machine , high-precision vision measurement machine with warranty

Description de produit

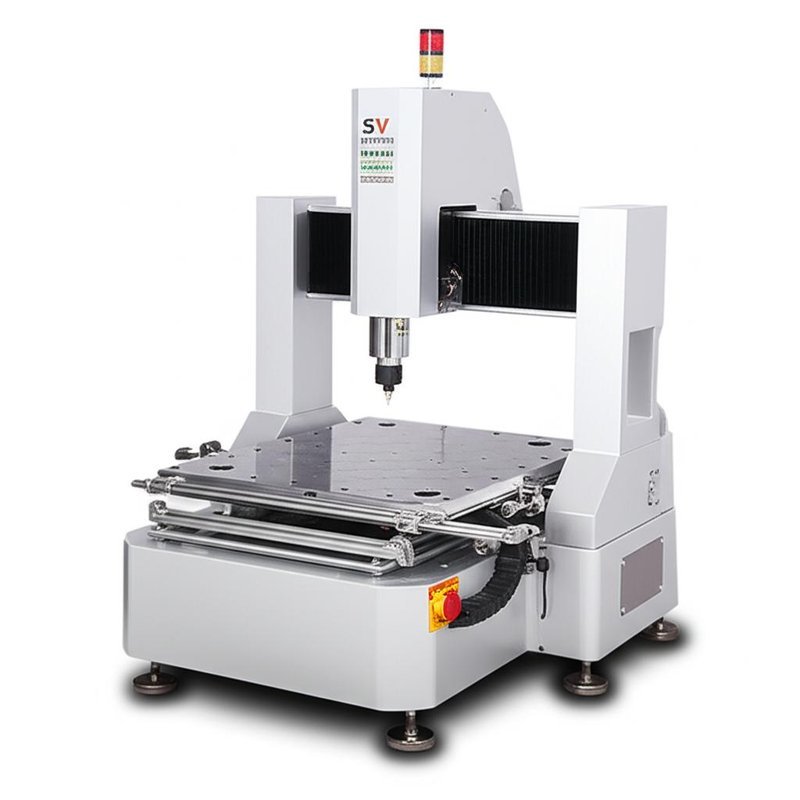

SV Series Marble Worktable Vision Measuring Machine – MARB Multi-Axis Base for High-Precision & Long-Lasting Mass Production QC

Product Overview

The MARB-SV series is a high-performance fully automatic marble workbench image measurement instrument featuring a high configuration with superior resolution and faster processing speed. This robust system achieves three-axis fully automatic programmable detection by matching the workpiece coordinate system through programmed execution. Designed for repeated measurements of heavy workpieces, it incorporates memory, learning, and auto-programming functions for rapid, accurate real-time measurement on-site. The marble construction ensures high stability, strong durability, and low maintenance costs, perfectly balancing high precision, high efficiency, and long-term durability for quality control in large-scale, complex manufacturing industries.

Technical Specifications

Model	SV-3	SV-4	SV-5	SV-6
Dimension (mm) (X/Y/Z)	650/950/1740	730/1040/1740	790/1130/1760	890/1370/1780
Measuring range (mm) (X/Y/Z)	300×200×200	400×300×200	500×400×300	600×500×200
Accuracy (μm)	2 +L/200	2 +L/200	2 +L/200	2.5 + L/100
Repeatability (μm)	2	2	2.5	2.5
Weight (kg)	400	500	600	700

Additional Specifications: Resolution: 0.5μm (0.1μm optional) | Industrial-grade color CCD camera | Lens: 1x-10x variable magnification | Magnification: 20X - 200X (varies by camera model) | Work Distance: 85 mm | Illumination: Programmable surface light, LED bottom parallel light (coaxial light optional) | Drive system: CNC control, linear motor drive; Joystick, mouse keyboard control | Linear scale resolution: 0.1μm

Applications

Plastic parts

Metal parts

Stamping mold

Rubber part

Electronic part

PCBA part

Gear part

Key Features

High Rigid Structure Design

Whole closed frame moving bridge structure with fixed measuring workpiece, providing large bearing capacity and excellent motion performance
Finite element analysis technology integrated into mechanical design for high rigidity and precision
Grade 000 granite base with high strength, corrosion resistance, and excellent stability
Aluminum oxide surface treatment worktable for fast, flexible action control, durability, and aesthetics

High Precision Configuration

RENISHAW open grating ruler with 0.5μm resolution for high precision and stability
Precision linear guide rail, ball screw of grinder, and AC servo motor ensure positioning accuracy
2M pixel high-definition color Giga digital camera for clear observation and stable measurement
6.5x high-definition optical lens with accurate automatic zoom and fast pixel calibration
Programmable 5-ring 8-zone LED surface light source with transmission parallel LED contour light source system and intelligent 256 level brightness adjustment
Full axis CNC control with AC full closed loop servo motor drive

Optional Multi-Sensor for 3D Measurement

The HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. Supports non-contact sensors including probe and laser systems, and RENSHAW full series probe brackets, enabling automatic transformation of full-scale measurement on a single device to maximize productivity.

Lieu d'origine:	Guangdong, Chine
Nom de marque:	UNIMETRO
Certification:	CE,ISO
Numéro de modèle:	Série SV

Quantité de commande min:	1 ensemble
Prix:	négociable
Détails d'emballage:	Boîtier en bois + boîtier sous vide
Délai de livraison:	15 ~ 20 jours
Conditions de paiement:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement:	5 ensembles par mois
